Soil Data Explorer - HARTLETON

Official Series Description

Lab Data Summary

Aggregate lab data for the HARTLETON soil series. This aggregation is based on all pedons with a current taxon name of HARTLETON, and applied along 1-cm thick depth slices. Solid lines are the slice-wise median, bounded on either side by the interval defined by the slice-wise 5th and 95th percentiles. The median is the value that splits the data in half. Five percent of the data are less than the 5th percentile, and five percent of the data are greater than the 95th percentile. Values along the right hand side y-axis describe the proportion of pedon data that contribute to aggregate values at this depth. For example, a value of "90%" at 25cm means that 90% of the pedons correlated to HARTLETON were used in the calculation. Source: KSSL snapshot (updated 2020-03-18). Methods used to assemble the KSSL snapshot used by SoilWeb / SDE

Pedons used in the lab summary:

MLRA	Lab ID	Pedon ID	Taxonname	CI	NSSL / NASIS Reports	Link To SoilWeb GMap
147	57PA025001	1957PA025001	Hartleton	4	Primary | Supplementary | Taxonomy | Pedon | Water Retention | Correlation | Andic Soil Properties	40.8608333,-75.5944444
147	59PA037004	1959PA037004	Hartleton	5	Primary | Supplementary | Taxonomy | Pedon | Water Retention | Correlation | Andic Soil Properties	41.1472222,-76.4625
147	59PA037014	1959PA037014	Hartleton	5	Primary | Supplementary | Taxonomy | Pedon | Water Retention | Correlation | Andic Soil Properties	40.9847222,-76.3991667
147	88PA107054	1988PA107054	Hartleton	3	Primary | Supplementary | Taxonomy | Pedon | Water Retention | Correlation | Andic Soil Properties	40.5316667,-76.23
147	57PA025008	S1957PA025008	Hartleton	4	Primary | Supplementary | Taxonomy | Pedon | Water Retention | Correlation | Andic Soil Properties	40.7902778,-75.7822222

Water Balance

Monthly water balance estimated using a leaky-bucket style model for the HARTLETON soil series. Monthly precipitation (PPT) and potential evapotranspiration (PET) have been estimated from the 50th percentile of gridded values (PRISM 1981-2010) overlapping with the extent of SSURGO map units containing each series as a major component. Monthly PET values were estimated using the method of Thornthwaite (1948). These (and other) climatic parameters are calculated with each SSURGO refresh and provided by the fetchOSD function of the soilDB package. Representative water storage values (“AWC” in the figures) were derived from SSURGO by taking the 50th percentile of profile-total water storage (sum[awc_r * horizon thickness]) for each soil series. Note that this representation of “water storage” is based on the average ability of most plants to extract soil water between 15 bar (“permanent wilting point”) and 1/3 bar (“field capacity”) matric potential. Soil moisture state can be roughly interpreted as “dry” when storage is depleted, “moist” when storage is between 0mm and AWC, and “wet” when there is a surplus. Clearly there are a lot of assumptions baked into this kind of monthly water balance. This is still a work in progress.

Sibling Summary

Siblings are those soil series that occur together in map units, in this case with the HARTLETON series. Sketches are arranged according to their subgroup-level taxonomic structure. Source: SSURGO snapshot (updated 2024-02-21), parsed OSD records (updated 2023-10-06) and snapshot of SC database (updated 2023-10-02).

Select annual climate data summaries for the HARTLETON series and siblings. Series are sorted according to hierarchical clustering of median values. Source: SSURGO map unit geometry and 1981-2010, 800m PRISM data (updated 2023-10-09).

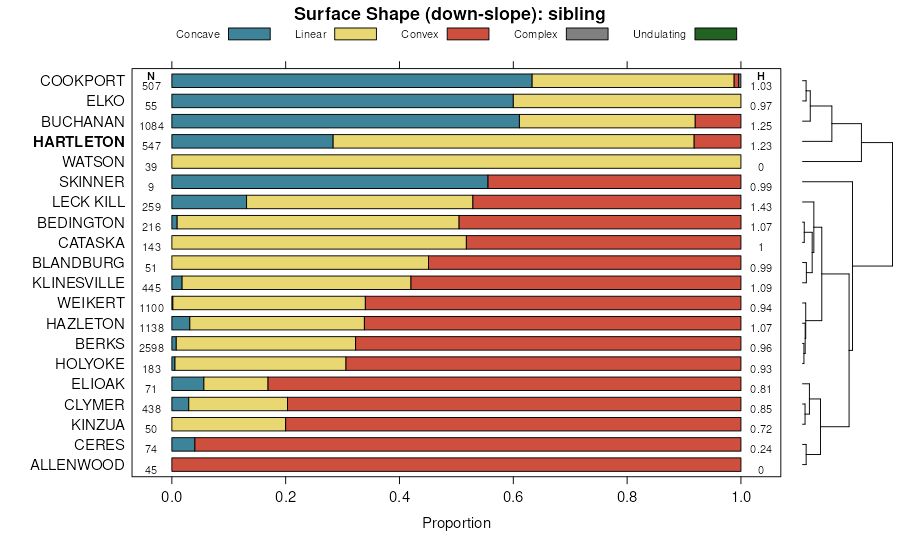

Geomorphic description summaries for the HARTLETON series and siblings. Series are sorted according to hierarchical clustering of proportions and relative hydrologic position within an idealized landform (e.g. top to bottom). Most soil series (SSURGO components) are associated with a hillslope position and one or more landform-specific positions: hills, mountain slopes, terraces, and/or flats. Proportions can be interpreted as an aggregate representation of geomorphic membership. The values printed to the left (number of component records) and right (Shannon entropy) of stacked bars can be used to judge the reliability of trends. Small Shannon entropy values suggest relatively consistent geomorphic association, while larger values suggest lack thereof. Source: SSURGO component records (updated 2023-10-04).

There are insufficient data to create the 3D flats position figure.

Competing Series

Soil series competing with HARTLETON share the same family level classification in Soil Taxonomy. Source: parsed OSD records (updated 2023-10-06) and snapshot of the SC database (updated 2023-10-02).

Select annual climate data summaries for the HARTLETON series and competing. Series are sorted according to hierarchical clustering of median values. Source: SSURGO map unit geometry and 1981-2010, 800m PRISM data (updated 2023-10-09).

Geomorphic description summaries for the HARTLETON series and competing. Series are sorted according to hierarchical clustering of proportions and relative hydrologic position within an idealized landform (e.g. top to bottom). Proportions can be interpreted as an aggregate representation of geomorphic membership. Most soil series (SSURGO components) are associated with a hillslope position and one or more landform-specific positions: hills, mountain slopes, terraces, and/or flats. The values printed to the left (number of component records) and right (Shannon entropy) of stacked bars can be used to judge the reliability of trends. Shannon entropy values close to 0 represent soil series with relatively consistent geomorphic association, while values close to 1 suggest lack thereof. Source: SSURGO component records (updated 2023-10-04).

There are insufficient data to create the 3D terrace figure.

There are insufficient data to create the 3D flats position figure.

Soil series sharing subgroup-level classification with HARTLETON, arranged according to family differentiae. Hovering over a series name will print full classification and a small sketch from the OSD. Source: snapshot of SC database (updated 2023-10-02).

Block Diagrams

Click a link below to display the diagram. Note that these diagrams may be from multiple survey areas.

1. PA-2012-03-13-06 | Cameron and Elk Counties - February 1993

   Typical pattern of soils and underlying material in the Leck Kill-Hartleton-Albrights association (Soil Survey of Cameron and Elk Counties, PA; 1993).

2. PA-2012-03-13-57 | Lycoming County - November 1986

   Typical pattern of soils and underlying material in the Weikert-Berks-Hartleton association (Soil Survey of Lycoming County, PA; 1986).

3. PA-2012-03-13-61 | McKean County - August 1987

   Typical landscape pattern of the soils and the underlying material in the Buchanan-Hartleton-Leck Kill general soil map unit (Soil Survey of McKean County, PA; 1987).

4. PA-2012-03-13-62 | McKean County - August 1987

   Typical landscape pattern of the soils and the underlying material in the Cookport-Hazleton general soil map unit (Soil Survey of McKean County, PA; 1987).

5. PA-2012-03-13-75 | Montour County - April 1985

   Typical pattern of soils and underlying material in the Weikert-Berks-Hartleton association (Soil Survey of Montour County, PA; 1985).

6. PA-2012-03-14-05 | Northumberland County - March 1985

   Typical pattern of soils and underlying material in the Weikert-Berks-Hartleton association (Soil Survey of Northumberland County, PA; 1985).

7. PA-2012-03-14-07 | Northumberland County - March 1985

   Typical pattern of soils and underlying material in the Watson-Alvira-Allenwood association (Soil Survey of Northumberland County, PA; 1985).

8. PA-2012-03-14-10 | Snyder County - April 1985

   Typical pattern of soils and underlying material in the Weikert-Hartleton association (Soil Survey of Snyder County, PA; 1985).

9. PA-2012-03-14-22 | Union County - March 1985

   Typical pattern of soils and underlying material in the Weikert-Berks-Hartleton association (Soil Survey of Union County, PA; 1985).

Map Units

Map units containing HARTLETON as a major component. Limited to 250 records.

Map Unit Name	Symbol	Map Unit Area (ac)	Map Unit Key	National Map Unit Symbol	Soil Survey Area	Publication Date	Map Scale
Elioak-Hartleton-Aiken families, deep, 15 to 50 percent slopes	227	1354	470226	hs9l	ca701	1984	1:24000
Hartleton-Elioak-Chenango families association, deep, 20 to 50 percent slopes	209	826	470211	hs93	ca701	1984	1:24000
Hartleton-Elioak families, deep-Holyoke family association, 30 to 70 percent slopes	228	797	470227	hs9m	ca701	1984	1:24000
Hartleton channery silt loam, 25 to 35 percent slopes	108E	467	318225	bp4b	ny009	2002	1:24000
Hartleton channery silt loam, 15 to 25 percent slopes	108D	54	318226	bp4c	ny009	2002	1:24000
Hartleton channery silt loam, 35 to 50 percent slopes	108F	48	318227	bp4d	ny009	2002	1:24000
Hartleton channery silt loam, 3 to 8 percent slopes, moderately eroded	HaB2	3401	539326	l36m	pa025	1960	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes, severely eroded	HaC3	758	539328	l36p	pa025	1960	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes, moderately eroded	HaC2	717	539327	l36n	pa025	1960	1:20000
Hartleton channery silt loam, 0 to 3 percent slopes	HaA	284	539325	l36l	pa025	1960	1:20000
Hartleton very stony loam, 0 to 8 percent slopes	HsB	185	539331	l36s	pa025	1960	1:20000
Hartleton very stony loam, 8 to 25 percent slopes	HsD	181	539332	l36t	pa025	1960	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes, severely eroded	HaD3	149	539330	l36r	pa025	1960	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes, moderately eroded	HaD2	41	539329	l36q	pa025	1960	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HrB	146	1482817	1lrzt	pa033	1981	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HrC	55	1482818	1lrzv	pa033	1981	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HrD	42	1482819	1lrzw	pa033	1981	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HhB	344	544003	l82h	pa035	2002	1:24000
Hartleton channery silt loam, 8 to 15 percent slopes	HhC	243	544005	l82k	pa035	2002	1:24000
Hartleton channery silt loam, 0 to 3 percent slopes	HhA	88	544002	l82g	pa035	2002	1:24000
Hartleton channery silt loam, 3 to 12 percent slopes, moderately eroded	HhB2	26033	539478	l3cj	pa037	1965	1:20000
Hartleton channery silt loam, 12 to 20 percent slopes, moderately eroded	HhC2	10897	539479	l3ck	pa037	1965	1:20000
Hartleton channery silt loam, 20 to 35 percent slopes, moderately eroded	HhD2	3436	539481	l3cm	pa037	1965	1:20000
Hartleton channery silt loam, 20 to 35 percent slopes, severely eroded	HhD3	2500	539482	l3cn	pa037	1965	1:20000
Hartleton channery silt loam, 12 to 20 percent slopes, severely eroded	HhC3	2362	539480	l3cl	pa037	1965	1:20000
Hartleton channery silt loam, 0 to 3 percent slopes	HhA	419	539477	l3ch	pa037	1965	1:20000
Hartleton very stony silt loam, 0 to 12 percent slopes	HrB	305	539483	l3cp	pa037	1965	1:20000
Hartleton very stony silt loam, 12 to 35 percent slopes	HrD	304	539484	l3cq	pa037	1965	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HlB	872	2398989	2ljbr	pa065	2012	1:12000
Hartleton channery silt loam, 15 to 25 percent slopes	HlD	779	2398991	2ljbt	pa065	2012	1:12000
Hartleton channery silt loam, 8 to 15 percent slopes	HlC	466	2398990	2ljbs	pa065	2012	1:12000
Hartleton channery silt loam, 25 to 60 percent slopes	HlF	185	2398992	2ljbv	pa065	2012	1:12000
Hartleton channery silt loam, 8 to 15 percent slopes	HhC	11397	539080	l2yp	pa081	1981	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HhB	4667	539079	l2yn	pa081	1981	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HhD	4295	539081	l2yq	pa081	1981	1:20000
Hartleton and Buchanan soils, 25 to 60 percent slopes	HeF	135690	539909	l3tf	pa083	1984	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HaD	10211	539904	l3t8	pa083	1984	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HaC	9465	539903	l3t7	pa083	1984	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HaB	5799	539902	l3t6	pa083	1984	1:20000
Hartleton channery silt loam, 8 to 25 percent slopes, very stony	HeD	24	1452415	1krc3	pa083	1984	1:20000
Hartleton channery silt loam, 2 to 8 percent slopes	HaB	2937	296300	9yb2	pa089	1975	1:20000
Weikert-Hartleton channery silt loams, 3 to 8 percent slopes	WhB	2816	296373	9ydf	pa089	1975	1:20000
Weikert-Hartleton channery silt loams, 8 to 15 percent slopes	WhC	2798	296374	9ydg	pa089	1975	1:20000
Hartleton channery silt loam, 8 to 20 percent slopes	HaC	1311	296301	9yb3	pa089	1975	1:20000
Weikert-Hartleton channery silt loams, 15 to 25 percent slopes	WhD	1050	296375	9ydh	pa089	1975	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HtC	3615	538995	l2vy	pa093	1980	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HtD	1773	538996	l2vz	pa093	1980	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HtB	1732	538994	l2vx	pa093	1980	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HtC	11341	539633	l3jj	pa097	1980	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HtB	5758	539632	l3jh	pa097	1980	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HtD	4245	539634	l3jk	pa097	1980	1:20000
Hartleton channery silt loam, frigid, 15 to 25 percent slopes	HafD	7260	2440153	2mx5m	pa105	1953	1:24000
Hartleton channery silt loam, frigid, 8 to 15 percent slopes	HafC	3670	2440154	2mx5n	pa105	1953	1:24000
Hartleton channery silt loam, 15 to 25 percent slopes	HaD	2355	1882874	2168w	pa105	1953	1:24000
Hartleton channery silt loam, frigid, 3 to 8 percent slopes	HafB	1748	2440152	2mx5l	pa105	1953	1:24000
Hartleton channery silt loam, 8 to 15 percent slopes	HaC	1575	2436925	2msth	pa105	1953	1:24000
Hartleton channery silt loam, frigid, 15 to 25 percent slopes, extremely stony	HbfD	605	2999043	2x4x1	pa105	1953	1:24000
Hartleton channery silt loam, 15 to 25 percent slopes, extremely stony	HasD	354	2440151	2mx5k	pa105	1953	1:24000
Hartleton channery silt loam, 0 to 8 percent slopes	HaB	246	2440150	2mx5j	pa105	1953	1:24000
Hartleton channery silt loam, 3 to 8 percent slopes	HaB	8103	539721	l3mc	pa107	1977	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HaC	7343	539722	l3md	pa107	1977	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HaD	2940	539723	l3mf	pa107	1977	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HtC	7777	540815	l4rn	pa109	1980	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HtB	5267	540814	l4rm	pa109	1980	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HtD	1950	540816	l4rp	pa109	1980	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HtB	1777	540914	l4vv	pa119	1980	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HtC	1462	540915	l4vw	pa119	1980	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HtD	656	540916	l4vx	pa119	1980	1:20000
Hartleton channery silt loam, 25 to 60 percent slopes	HaF	118456	539175	l31r	pa607	1986	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HaB	16780	539172	l31n	pa607	1986	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HaD	14657	539174	l31q	pa607	1986	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HaC	14046	539173	l31p	pa607	1986	1:20000
Hartleton channery silt loam, 8 to 25 percent slopes, very stony	HeD	2519	539177	l31t	pa607	1986	1:20000
Hartleton channery silt loam, 0 to 8 percent slopes, very stony	HeB	1353	539176	l31s	pa607	1986	1:20000
Hartleton channery silt loam, 35 to 50 percent slopes	HaF	923	1452231	1kr55	pa609	1979	1:20000
Hartleton channery silt loam, 15 to 25 percent slopes	HaD	195	1451344	1kq7k	pa609	1979	1:20000
Hartleton channery silt loam, 8 to 15 percent slopes	HaC	114	1451343	1kq7j	pa609	1979	1:20000
Hartleton channery silt loam, 3 to 8 percent slopes	HaB	5	1451342	1kq7h	pa609	1979	1:20000
Cataska-Hartleton very stony loams, 25 to 60 percent slopes	11E	3500	516298	kb7s	va003	1981	1:15840
Cataska-Hartleton very stony loams, 15 to 25 percent slopes	11D	610	516297	kb7r	va003	1981	1:15840
Hartleton-Cataska very stony loams, 7 to 15 percent slopes	35C	500	516357	kb9p	va003	1981	1:15840
Hartleton soils, 25 to 75 percent slopes	49F	9008	517849	kcvt	va015	1978	1:15840
Hartleton channery loam, 15 to 45 percent slopes	48E	1614	517848	kcvs	va015	1978	1:15840
Hartleton channery loam, 25 to 75 percent slopes, extremely stony	49F	15	3025780	2xd5w	va820		1:12000
Hartleton channery loam, 15 to 45 percent slopes	48E	9	3025781	2xd5v	va820		1:12000

Map of Series Extent

Approximate geographic distribution of the HARTLETON soil series. To learn more about how this distribution was mapped, or to compare this soil series extent to others, use the Series Extent Explorer (SEE) application. Source: generalization of SSURGO geometry (updated 2023-10-04).
